The enclosure that
does everything.

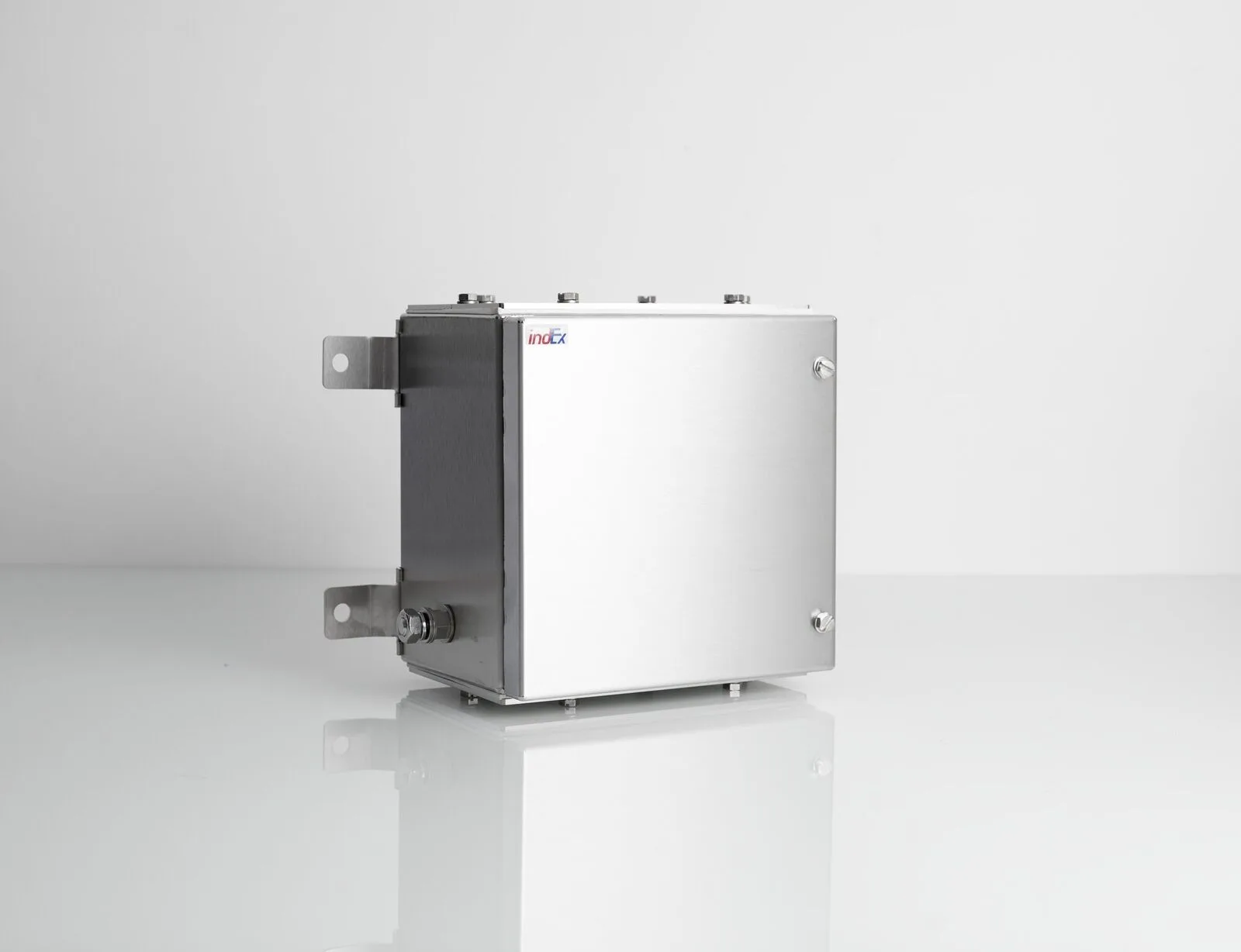

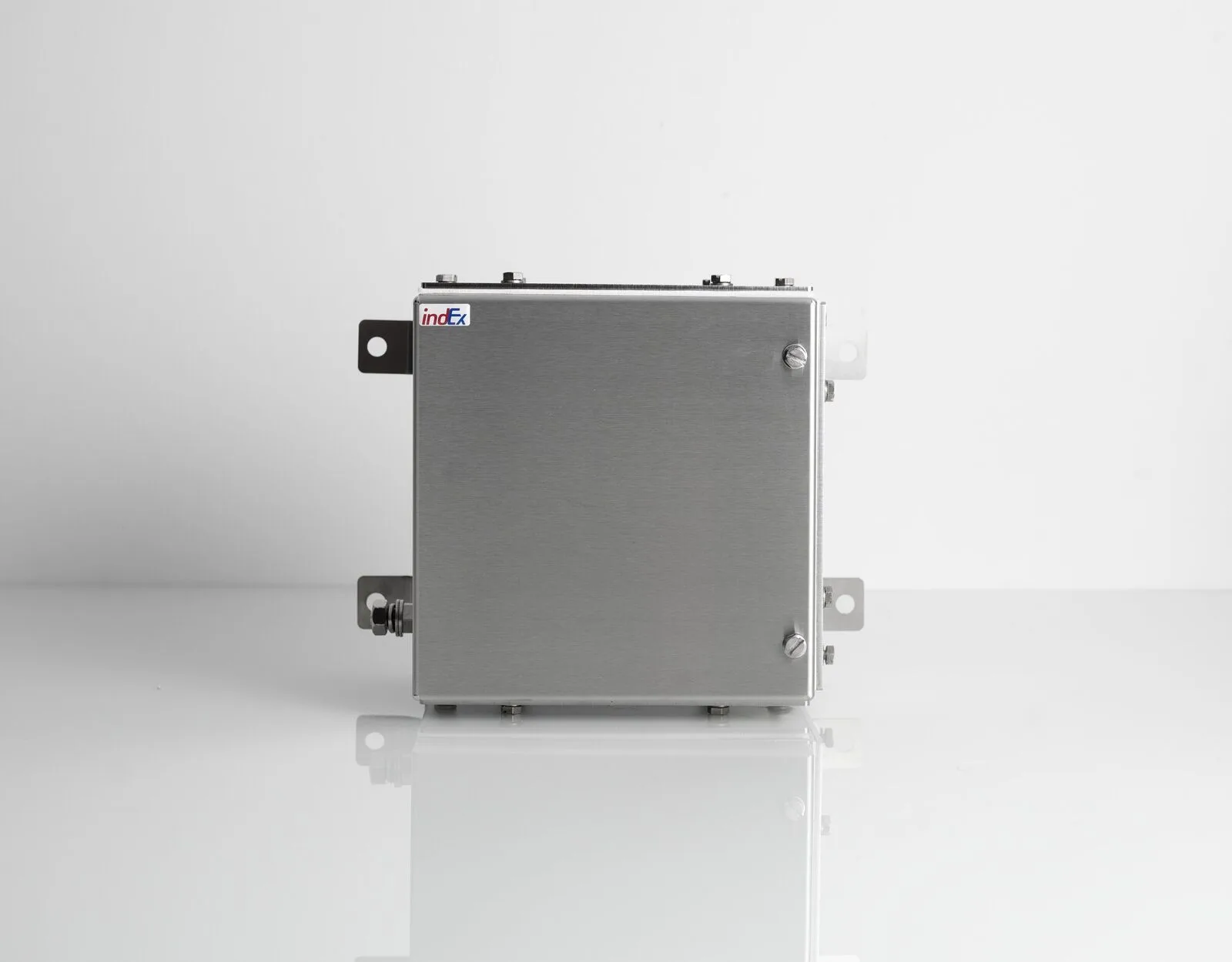

Hinged-lid terminal boxes in 316L stainless, 304 stainless and mild steel. ATEX Ex e certified for Zone 1 and Zone 2. Any size from 200×200×150 to 2000×1000×800.
A hinged-lid box
built to your spec.
The iTB is indEx's core product: a fabricated terminal box with a hinged lid, available in any size, any material, with any entry configuration. In its ATEX variant (iTB·Ex) it is certified to Ex e increased safety under IEC 60079-7 and carries ATEX, IECEx and UKCA approvals. In its industrial variant it meets IP66 without hazardous area certification.
Every iTB is fabricated to your drawing in our Ashford, Kent facility. No standard SKUs , the size, material, finish, entry positions, and terminal population are all specified by you.
The lid stays open during installation, no hands needed. Stainless steel hinge pin. High-performance silicone gasket maintains IP66. Lid bolts on opposite side to hinge.
Custom sized to your footprint. Depth to accommodate your terminal block count and wiring radius. No minimum order.
Marked II 2 GD. Gas: Ex e IIC Gb, Zone 1 & 2, T4–T6. Dust: Ex tb IIIC Db IP66, Zone 21 & 22. ATEX Directive 2014/34/EU, IECEx and UKCA certified. CML-certified terminals to your schedule.
Cut, formed and welded in-house. 316L for marine and chemical. 304 for food and pharma. Mild steel powder-coated where corrosion is not a concern.

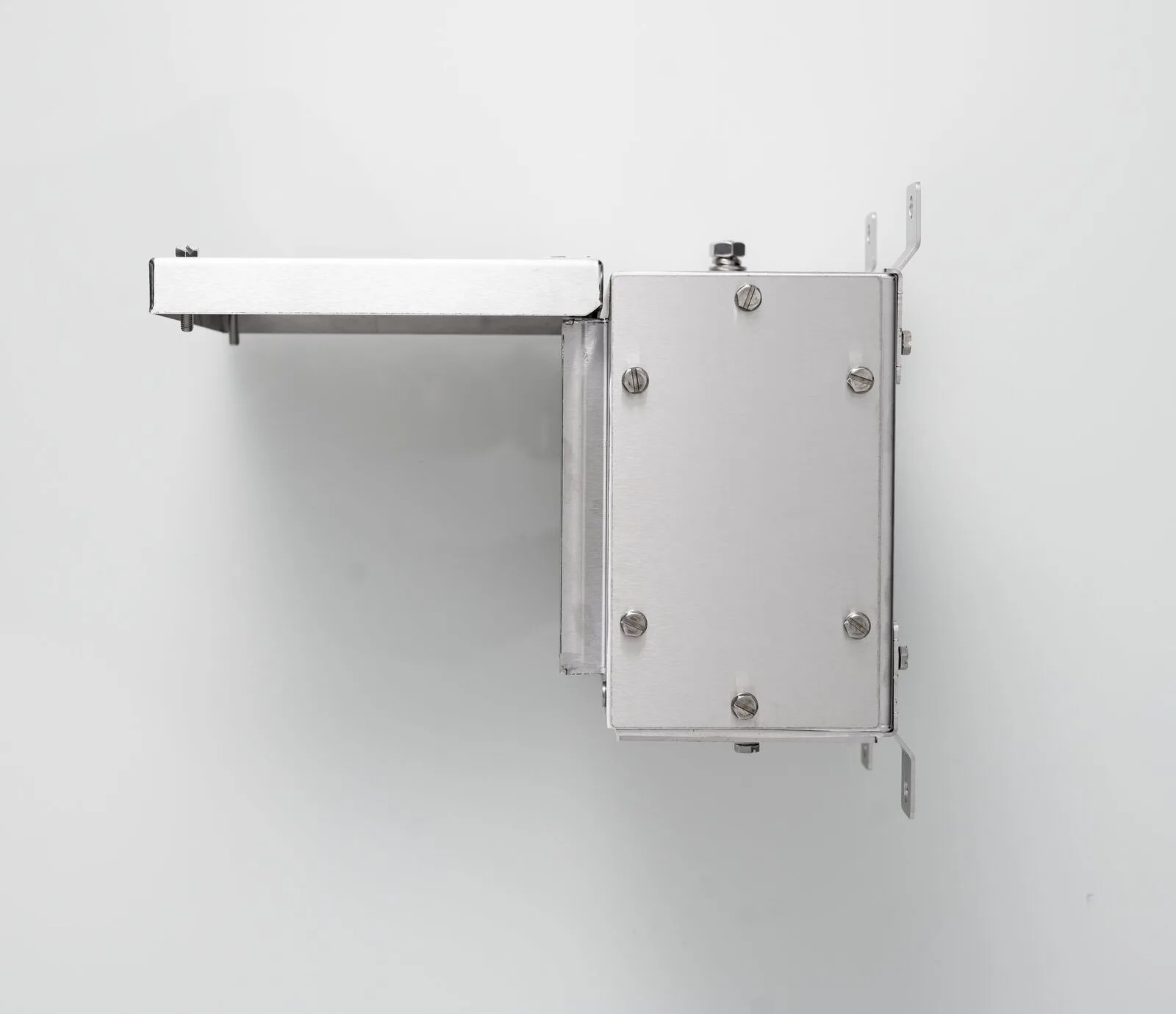

Standard removable gland plates bottom and sides. Top-entry gland plates to order. Custom hole patterns to your cable schedule. Blanked as standard.

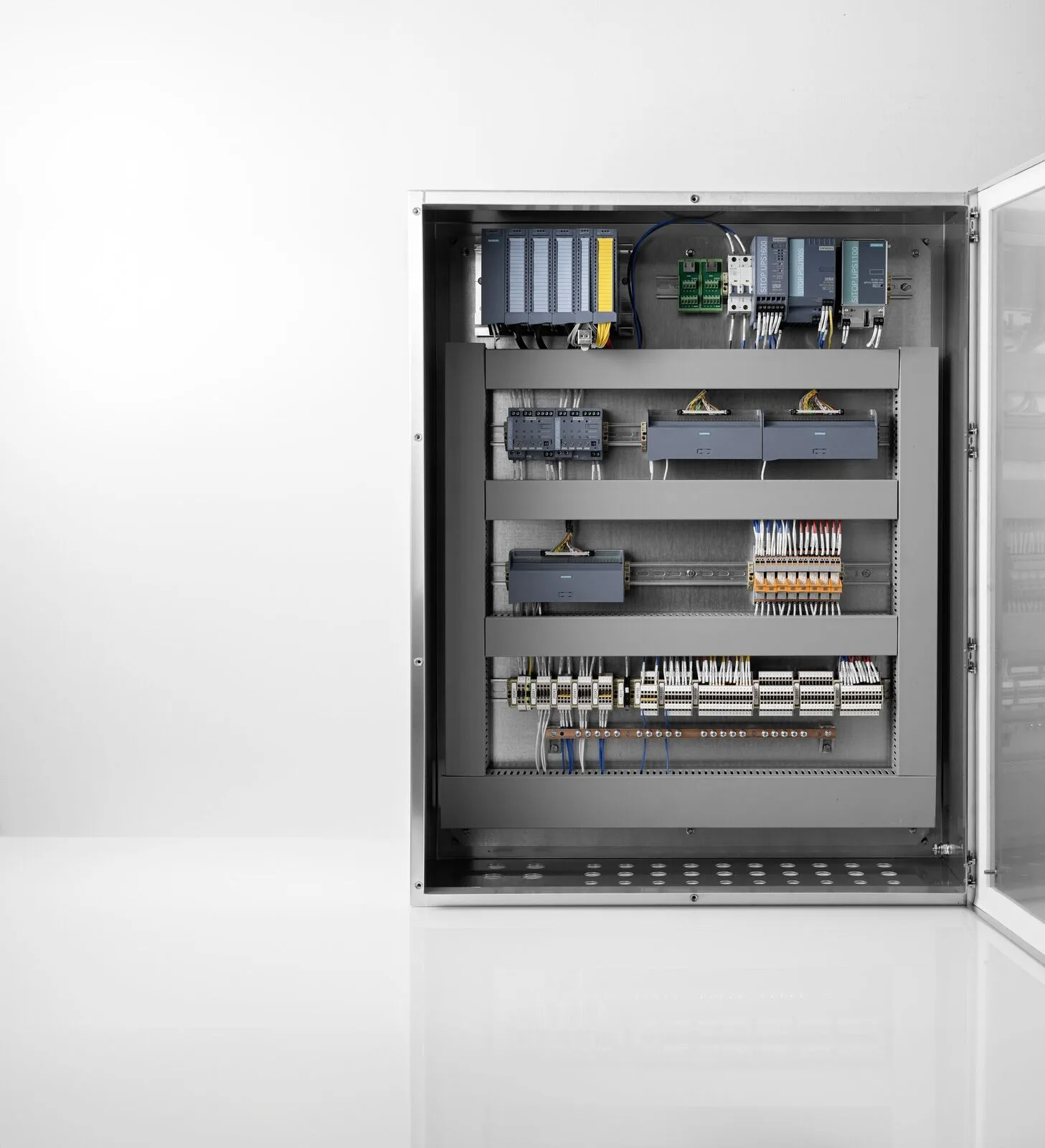

Supplied empty or fitted with Ex e certified terminal blocks (Phoenix, Entrelec or equivalent) to your terminal schedule. DIN rail, earth bars and end-stops included.
Key technical data.
Full dimensional drawings, material certificates and terminal datasheets are available on request. Download the product datasheet below for the standard specification.
12 standard sizes. Custom sizes at no extra lead time, send us your dimensions.
| Order code | H | W | D | Hinges | Bolts |
|---|---|---|---|---|---|
| iTB 231513 | 230 | 150 | 130 | 2 | 2 |
| iTB 302015 | 300 | 200 | 150 | 2 | 2 |
| iTB 303015 | 300 | 300 | 150 | 2 | 2 |
| iTB 403015 | 400 | 300 | 150 | 2 | 2 |
| iTB 404015 | 400 | 400 | 150 | 2 | 2 |
| iTB 504015 | 500 | 400 | 150 | 2 | 2 |
| iTB 604020 | 600 | 400 | 200 | 2 | 2 |
| iTB 755020 | 750 | 500 | 200 | 3 | 2 |
| iTB 906020 | 900 | 600 | 200 | 3 | 3 |
| iTB 1008020 | 1000 | 800 | 200 | 4 | 5 |
| iTB 1208030 | 1200 | 800 | 300 | 4 | 5 |
| iTB 12010030 | 1200 | 1000 | 300 | 4 | 5 |
All dimensions in mm · H = height · W = width · D = depth
Sizes, materials,
configurations.
One product line.
Two certification paths.
iTB·Ex, Hazardous area
Certified to ATEX Directive 2014/34/EU, IECEx and UKCA. Category II 2 G, Ex e IIC. Certified for Zone 1 and Zone 2 gas environments. Supplied with a Conformity of Construction document and a Declaration of Conformity. CML-certified Ex e terminals fitted to your schedule. Full ATEX documentation pack included with every order.
- Zones 1 and 2 (gas)
- ATEX CML 18ATEX3300X · IECEx CML 18.0229X · UKCA
- Ex e terminals fitted and documented
- Full compliance paperwork supplied
iTB, Industrial
The same fabricated terminal box without the hazardous area certification. IP66 as standard. Used across food and beverage, marine, infrastructure and general industrial plant where ATEX certification is not required. Available in all three materials: 316L, 304 and mild steel. No minimum order. Quantities from a single unit.
- IP66 (IP67 to order)
- 316L stainless · 304 stainless · mild steel
- Terminal blocks fitted or supplied empty
- ISO 9001:2015 quality management
Fully certified.
Paperwork supplied.
Every ATEX iTB ships with a Declaration of Conformity and Conformity of Construction referencing the certificate numbers below. Originals available on request.
Got a size or spec in mind?
We'll quote it today.
Send us your dimensions, material, entry requirements and terminal schedule. Same-day quote, 3–4 week lead time.
