Where stainless
isn't the answer.
Black glass-reinforced polyester enclosures for corrosive, coastal and chemical environments. ATEX certified for Zones 0, 1 & 2. Non-metallic, non-magnetic, non-conductive. IP66 & IP67.
Glass-reinforced polyester.
Built for the worst environments.

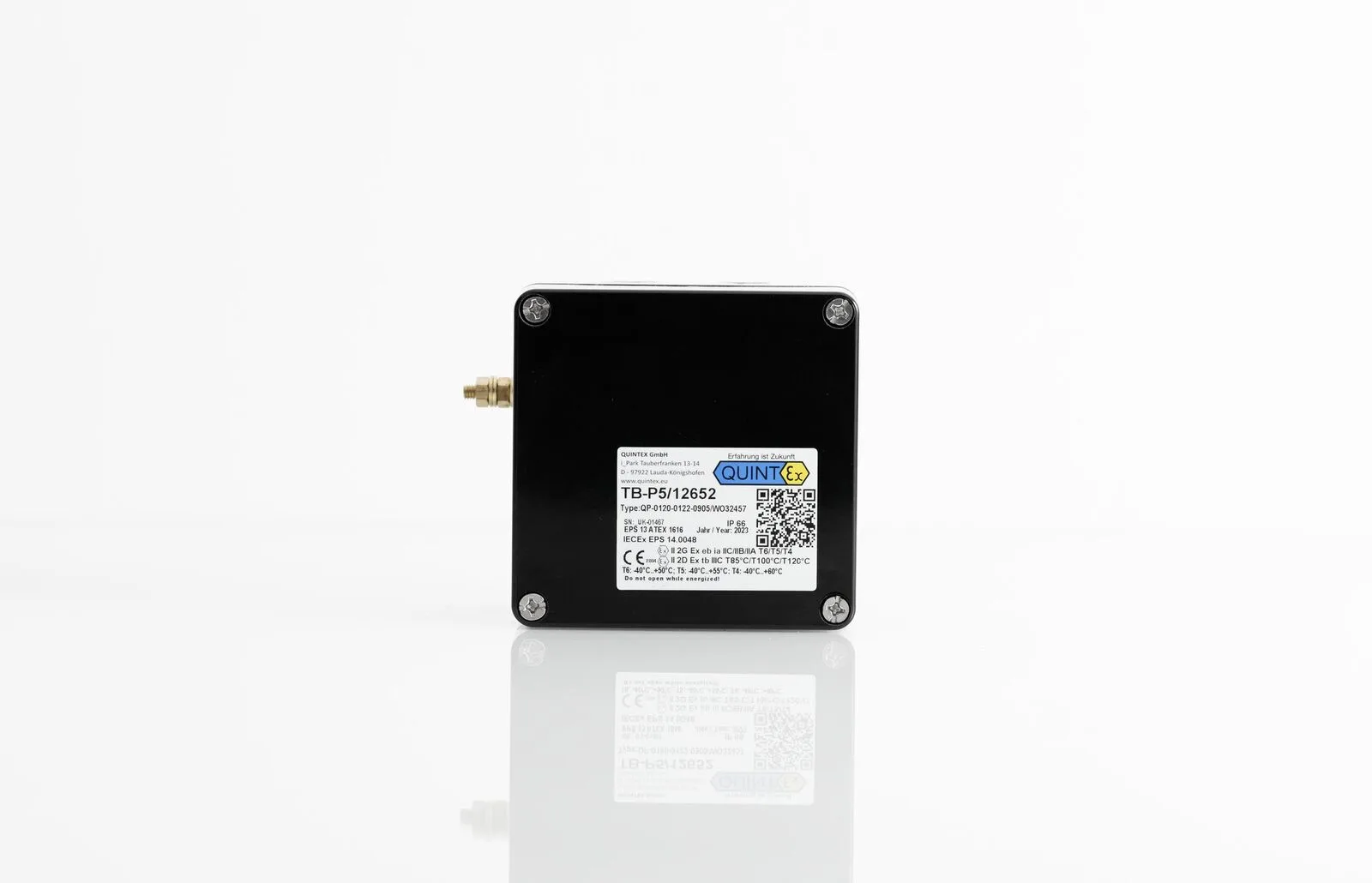

The iGRP is a die cast black glass-reinforced polyester (GRP) enclosure certified to ATEX under EPS09ATEX1237, marking II 1 G D T6, II 2 G D. It covers Zones 0, 1 & 2 for gas (Ex ia/ib/ic IIC, Ex e IIC, Ex nA, Ex nR) and Zones 21 & 22 for dust (Ex tb IIIC Db IP66). It is specified where metallic enclosures are unsuitable, aggressive acids, coastal brine, RF-transparent applications, or environments where non-magnetic or non-conductive properties are required.
Available empty or populated with Ex e certified terminals to your schedule. Same-day quoting, 3–4 week lead time from our Ashford facility.
GRP polyester is immune to the corrosion that affects even 316L stainless in aggressive acid, bleach or brine environments. Halogen-free material throughout.
Specified where magnetic or conductive enclosures cause interference or are a specification requirement. Also common in RF and instrumentation installations.
Significantly lighter than an equivalent stainless enclosure. Relevant for overhead and elevated installations, offshore platforms, or where manual handling is a concern.
Apparatus cert EPS09ATEX1237, marking II 1 G D T6, II 2 G D. Covers Zone 0 (Ex ia IIC), Zones 1 & 2 (Ex ia/ib/ic, Ex e, Ex nA, Ex nR) and dust Zones 21 & 22 (Ex tb IIIC Db IP66).
Carbon doping provides antistatic properties required for ATEX use. High UV, dust, fat, oil and bacterial resistance. LSOH throughout. Other colours available on request.

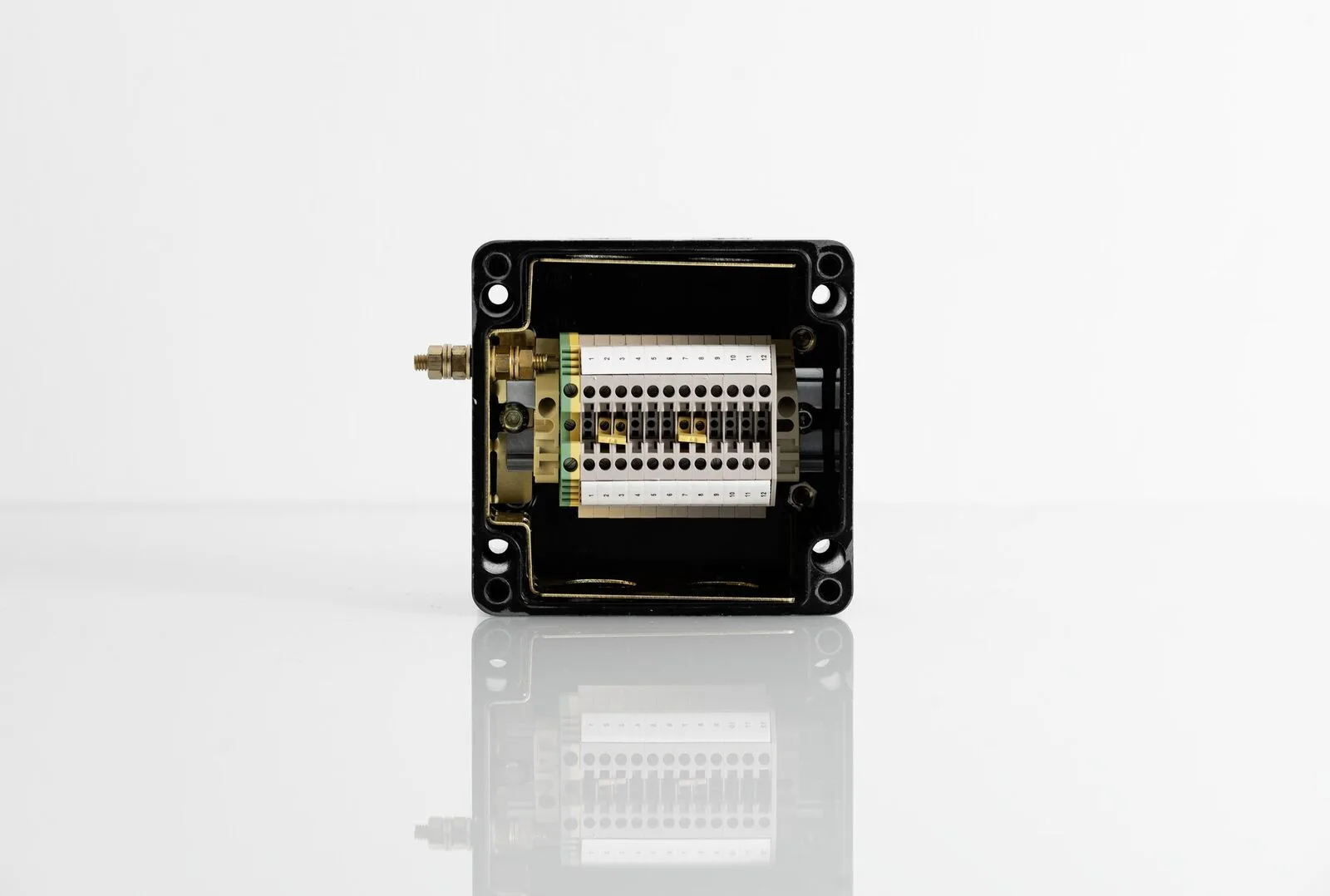

Supplied empty or populated with CML-certified Ex e terminals in your count and configuration. DIN rail, earth bars and end-stops included. Full ATEX documentation supplied.
GRP versus
stainless steel.
Neither material is universally better. GRP is chosen when corrosion, weight, conductivity or cost make stainless less suitable. If your environment or spec calls for stainless, see our iTB and iSTB ranges.
Key technical data.
Full dimensional drawings and chemical resistance data available on request. Download the product datasheet for the standard specification.
Off-the-shelf dimensions.
Standard sizes shown below. Custom sizes available to order, contact us with your requirements. ECP (end cap plates) available for most sizes; seek sales advice for iGRP 121209, iGRP 404012 and iGRP 404020.
Full gland entry and terminal population details available on request.
Inside and out.
Certified for
Zones 0, 1 & 2.
The iGRP carries a GRP-specific ATEX apparatus certificate (EPS09ATEX1237) and a component certificate (EPS10ATEX1268U), both from EPS, independent from our stainless steel certificates. Every ATEX iGRP ships with a full Declaration of Conformity and Conformity of Construction.
GRP specified?
We'll quote it today.
Tell us your size, terminal count and application. Same-day quote. 3–4 week lead time from our Kent facility.
